L&S TUBE-LIGHT-LINE L&S 660X400MM Ø250MM H= 6CM
L&S TUBE-LIGHT-LINE L&S 660X400MM Ø250MM H= 6CM
| Code | LSTU100LI400 |
| Code | LSTU100LI400 |
| Brand | LSDRAIN |
| Reference | 20043 |
| Unit | pieces |
| Product model | Clinker lid aluminium |
| Collection | Tube Light Line |
| Availablility |
|
| Description |

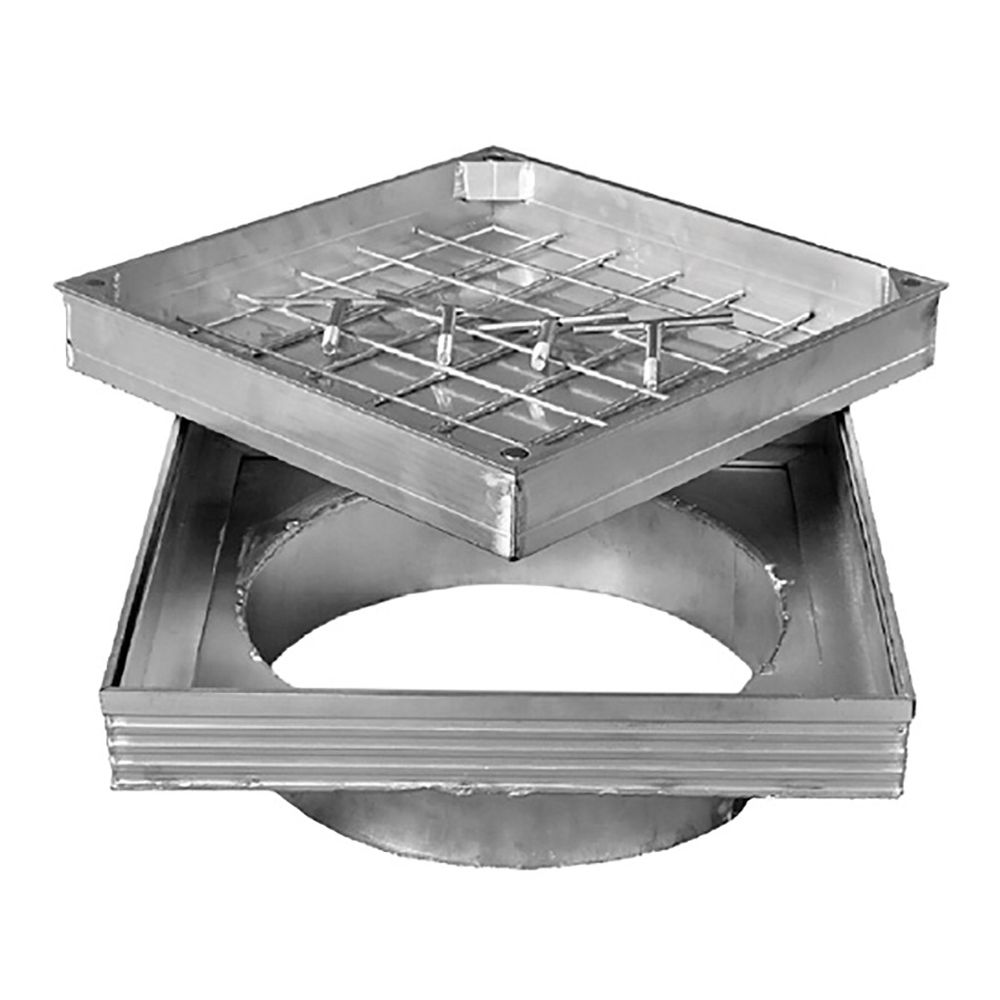

Frame and infill cover manufactured from extruded aluminium. Clear opening at the bottom: connection for a PVC drainage pipe (Ø 250, 315, 400 mm). The cover is loose-laid in the frame. Galvanised steel plate (3 mm) as base plate (on request: 3 mm aluminium base plate). Two seals: one at the base and one in the side of the outer frame. The T-shaped rubber seal has a threefold function: it prevents dirt ingress between the infill cover and the frame, the resilient effect avoids stresses between the infill cover and the frame, and it provides additional odour sealing. |
Frame and infill cover manufactured from extruded aluminium. Clear opening at the bottom: connection for a PVC drainage pipe (Ø 250, 315, 400 mm). The cover is loose-laid in the frame. Galvanised steel plate (3 mm) as base plate (on request: 3 mm aluminium base plate). Two seals: one at the base and one in the side of the outer frame. The T-shaped rubber seal has a threefold function: it prevents dirt ingress between the infill cover and the frame, the resilient effect avoids stresses between the infill cover and the frame, and it provides additional odour sealing.
- ✓ Access to your net prices
- ✓ Exclusive online promotions
- ✓ Tracking of your orders, deliveries, and invoices
- ✓ Insight into the currently available stock per branch
- ✓ 1% additional online order discount on top of your net prices
Product information
(Well informed)Description
(In detail)Frame and infill cover manufactured from extruded aluminium.
- Clear opening at the bottom: connection for a PVC drainage pipe (Ø 250, 315, 400 mm).
- The cover is loose-laid in the frame.
- Galvanised steel plate (3 mm) as base plate (on request: 3 mm aluminium base plate).
- Two seals: one at the base and one in the side of the outer frame.
- The T-shaped rubber seal has a threefold function: it prevents dirt ingress between the infill cover and the frame, the resilient effect avoids stresses between the infill cover and the frame, and it provides additional odour sealing.
Technical specifications
(Everything you should know)| Product type | Clinker lid aluminium |
| Collection | Tube Light Line |
| Width (mm) | 600mm |
| Height (mm) | 100mm |
| Load class | A15 |
| Shape | Round |
| Raw material | Aluminium |
| Length (mm) | 600mm |
| Inner diameter Ø (mm) | 400mm |
| Lid properties | Clinker lid, Tile cover |
| Weight (kg) | 17,32kg |
| Clear opening (mm) | 405mm |
| Product type | Clinker lid aluminium |
| Collection | Tube Light Line |
| Width (mm) | 600mm |
| Height (mm) | 100mm |
| Load class | A15 |
| Shape | Round |
| Raw material | Aluminium |
| Length (mm) | 600mm |
| Inner diameter Ø (mm) | 400mm |
| Lid properties | Clinker lid, Tile cover |
| Weight (kg) | 17,32kg |
| Clear opening (mm) | 405mm |
